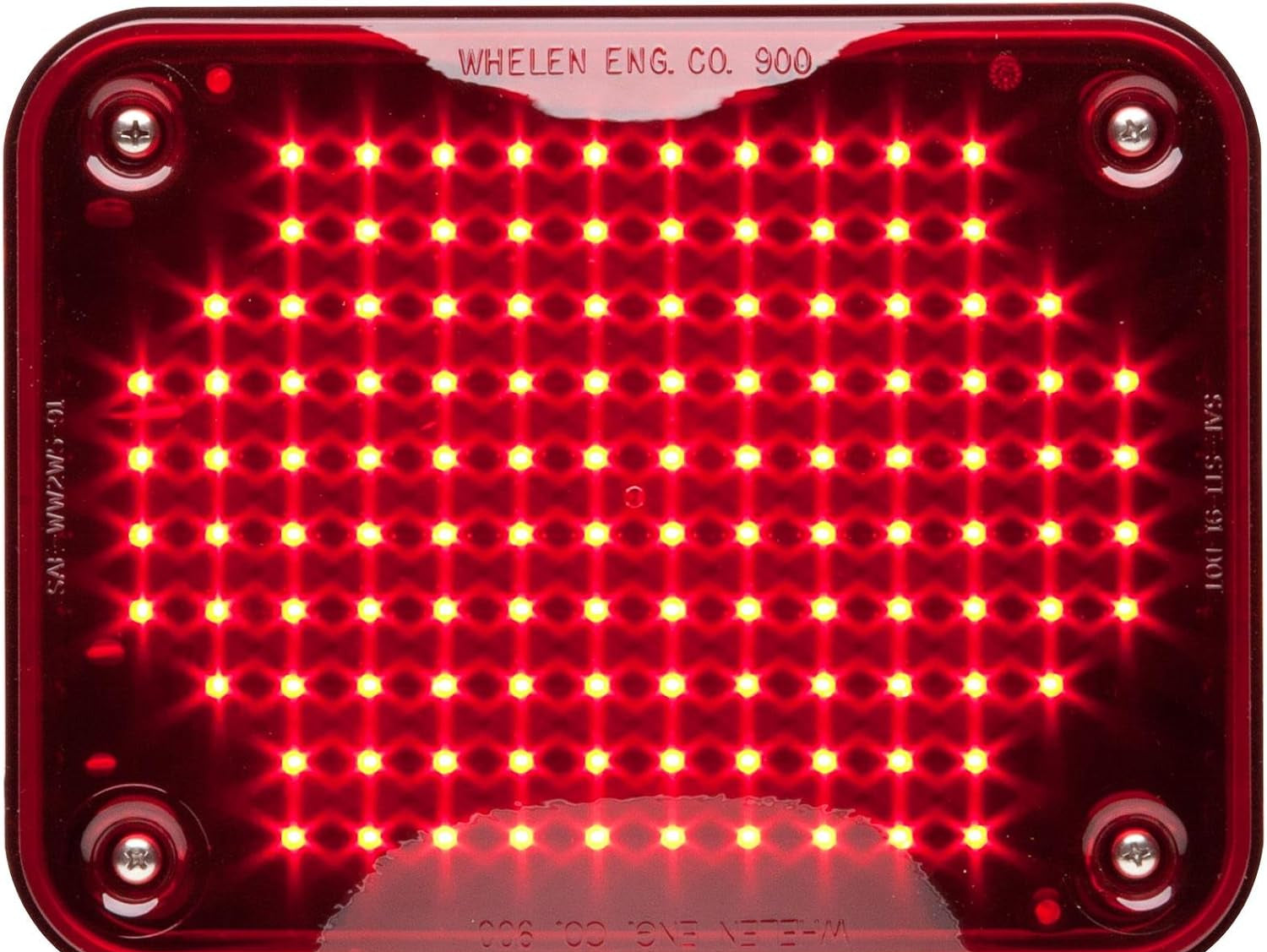

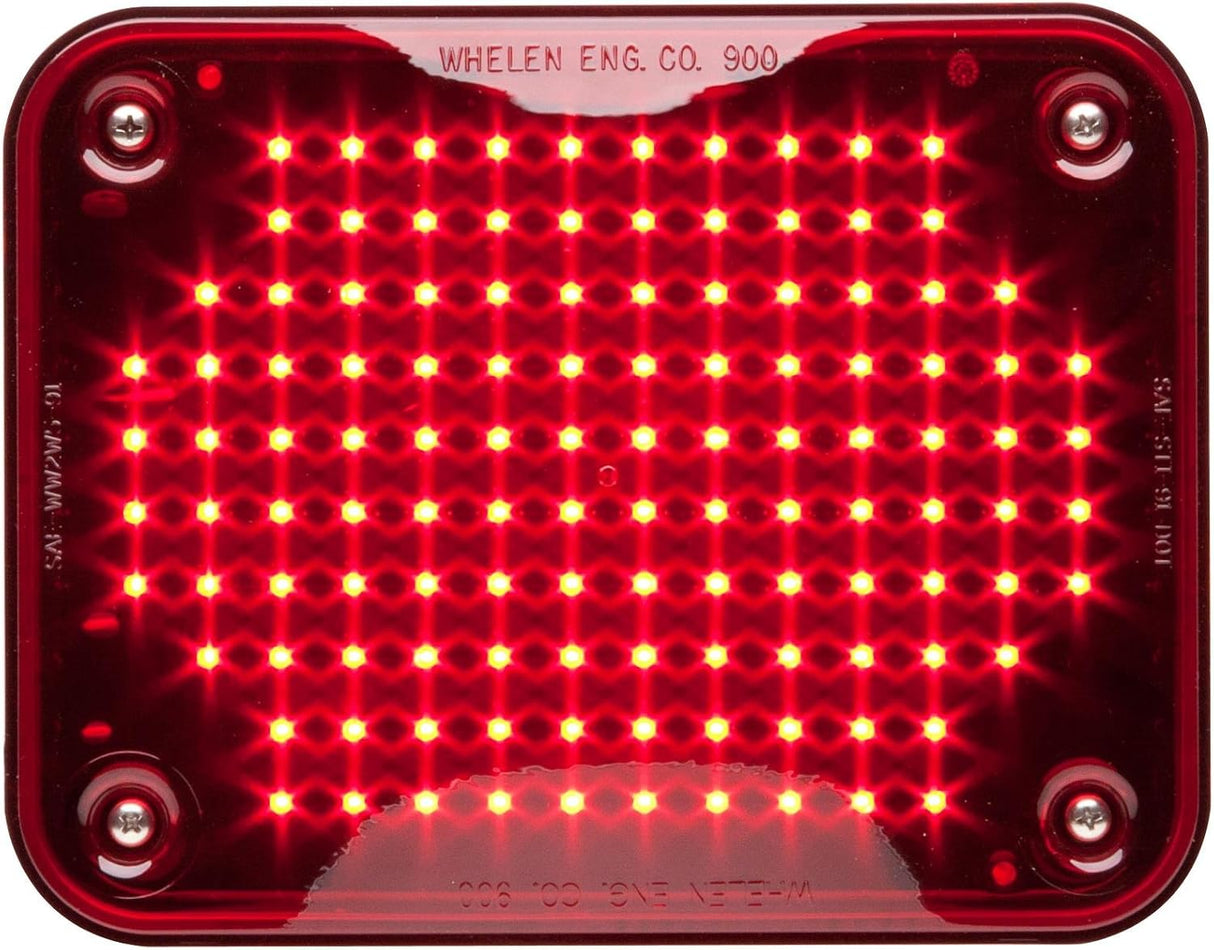

WHELEN 900 Series Super-LED® Brake/Tail and Turn, Lightheads

The 900 Series lighthead offers maximum light output in a large, durable design. Our Linear Super-LED® optic technology provides bright and consistent warning and scene lighting, making this lighthead an ideal solution for fire, EMS, and commercial vehicles that require wide-area illumination. The 900 Series delivers exceptional visibility, ensuring safety in both day and night operations, even in the most challenging conditions. Available in single or split-color models, this lighthead offers flexibility to adapt to different lighting needs, whether as a primary warning light or additional scene lighting. Constructed with our hard-coated polycarbonate lenses, the 900 Series resists damage from sand, sun, salt, and road chemicals, providing dependable, long-lasting performance for any fleet.

Optics Linear Super-LED®: SOLO™ and Split-Color models available
Technology SmartLED®: Self-contained electronics power and flash LEDs without the need for external flashers, ballasts, or power supplies
Scan-Lock™: Advanced flash pattern control
Flash Patterns SOLO: 14 Scan-Lock™ flash patterns
Split-Color: 54 Scan-Lock™ flash patterns
Control SmartLED or Steady
Customization Configuration: SOLO or Split-Color
Lenses: Clear or Color
Application Models Available: Warning, Brake/Tail/Turn, or Turn
Mounting: Surface or Recessed
Optional Additions: Black or Chrome Flange
Construction Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals
Conformal Coated Electronics: environmental, moisture, and vibration resistance
Mounting Surface
Included Cables & Hardware 18 AWG 12" (30.48 cm) Pigtail
Certifications SAE Standards
SAE J595
SAE J845
Emergency Vehicle Standards
NFPA 1900
KKK-A-1822F
Environmental
IP67
Regulatory Compliance
CA Title 13
R10
Warranty
5-year

Please see our warranty statement for more information here.

Voltage 12/24 VDC
Amps Linear: 1.4 (peak), 0.53 (avg.)
Brake/Tail/Turn:
Brake: 0.25 (avg.)
Tail: 0.4 (avg.)
Turn: 0.84 (peak), 0.34 (avg.)
Minimum Intensity Back-Up: 0.35 (avg.)
Maximum Intensity Back-Up Model: 0.6 (avg.)
Size Width: 9.15" (23.24 cm)
Height: 7.15" (18.16 cm)
Depth: 1.56" (3.96 cm)
