Surface-Mounted Lightheads 500 Series

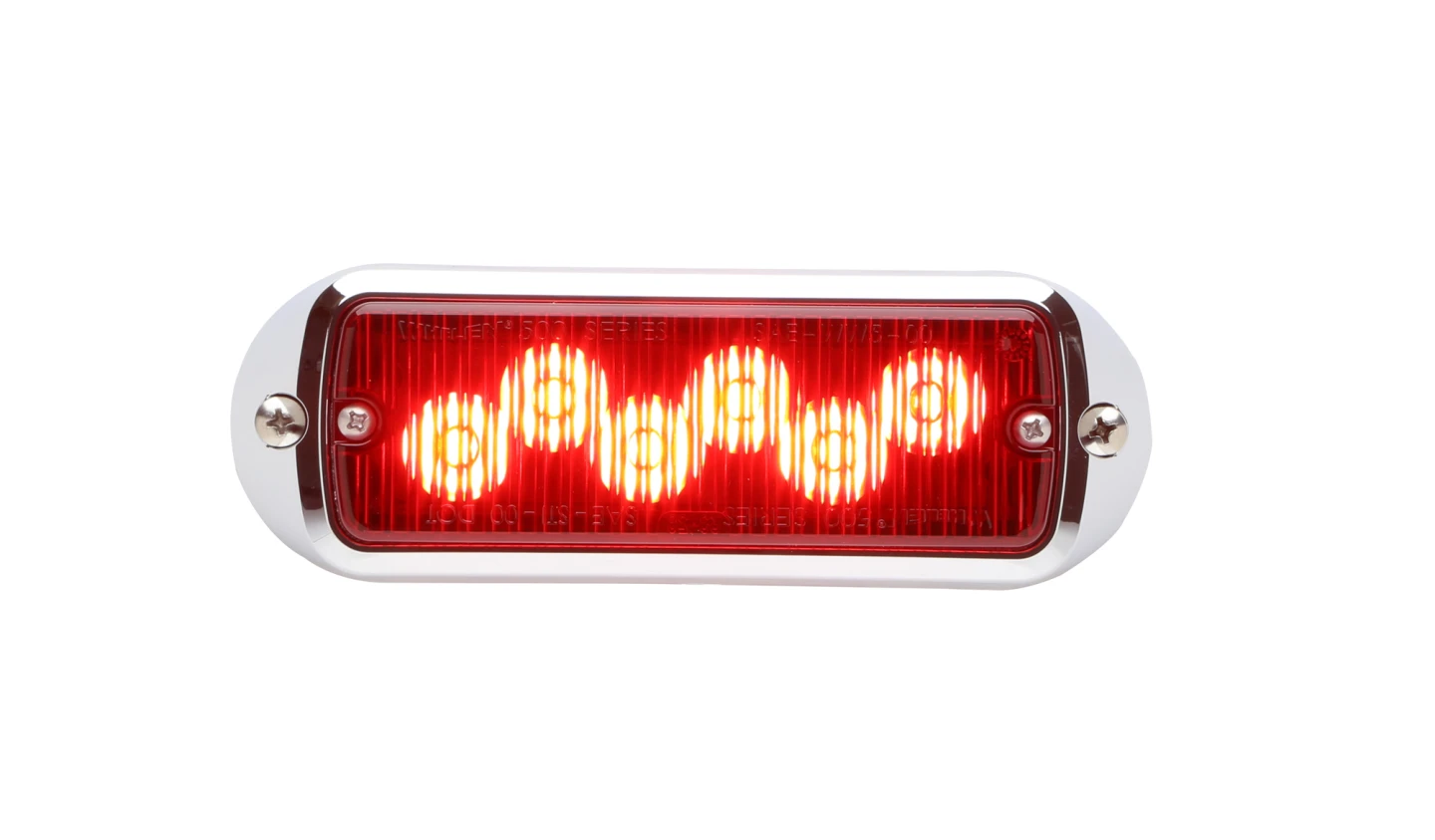

The 500 Series lighthead features our Linear Super-LED® optic technology, which provides bright, consistent warning illumination for several different vehicle applications, including fire, EMS, utility, and DOT fleets. Its design ensures powerful warning signals and scene lighting, providing effective visibility in both daytime and nighttime conditions. Built for mounting versatility, the 500 Series can be easily installed on a variety of vehicle surfaces. Engineered for durability, the 500 Series is built to withstand harsh environments, making it a reliable choice for any fleet requiring adaptable, high-output lighting.

Specifications
Please note: Not all specifications will apply to every model. Consult your sales representative to confirm specs.
Optics Linear Super-LED®: TIR6™ and V-Series™ models available
Technology SmartLED®: Self-contained electronics power and flash LEDs without the need for external flashers, ballasts, or power supplies
Scan-Lock™: Advanced flash pattern control
Sync: Connect multiple Whelen devices for synchronized or alternating flash patterns
Flash Patterns Single-Color: 25 Scan-Lock™ flash patterns
Split-Color: 69 Scan-Lock™ flash patterns
V-Series: 32 Scan-Lock™ flash patterns
Control SmartLED
Customization Configuration: Single-Color, Split-Color, Combination 180°/TIR3 Warning, or V-Series Combination 180° Warning/Alley/Puddle
Lenses: Clear or Color
Application Models Available: Warning, Brake/Tail/Turn, or Back-Up
Optional Additions: Black, Chrome, or Aluminum Flange, Grommet Mount Kit
Construction Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals
Conformal Coated Electronics: environmental, moisture, and vibration resistance
Fully Encapsulated: Moisture, vibration, and corrosion resistance
Mounting Surface
Included Cables & Hardware 18 AWG 12" (30.48 cm) Pigtail
Certifications SAE Standards
SAE J595
SAE J845
Emergency Vehicle Standards
NFPA 1900
KKK-A-1822F
Regulatory Compliance
CA Title 13
R10
Warranty 5-year
Please see our warranty statement for more information here.
Voltage 12 VDC
Amps Linear Single-Color: 1.0 (peak), 0.4 (avg.)
Linear Split-Color: 0.5 (peak), 0.2 (avg.) per side
TIR6 Single-Color: 0.63 (peak), 0.315 (avg.)
TIR6 Split-Color: 0.315 (peak), 0.125 (avg.) per side
V-Series Combination: Warning Lights: 0.12 (avg.), Alley Lights: 1.0 (avg.), Puddle Lights: 0.5 (avg.)
V-Series Single-Color Warning: 1.5 (peak), 0.6 (avg.)
Size Linear
Width: 5.00" (12.70 cm)
Height: 1.63" (4.14 cm)
Depth: 1.75" (4.45 cm)
TIR6
Width: 5.38" (13.67 cm)
Height: 2.13" (5.41 cm)
Depth: 1.63" (4.14 cm)
V-Series
Width: 5.38
