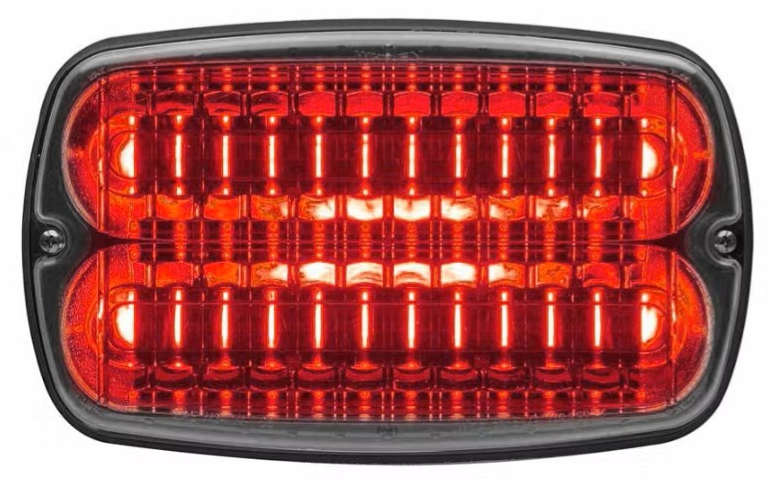

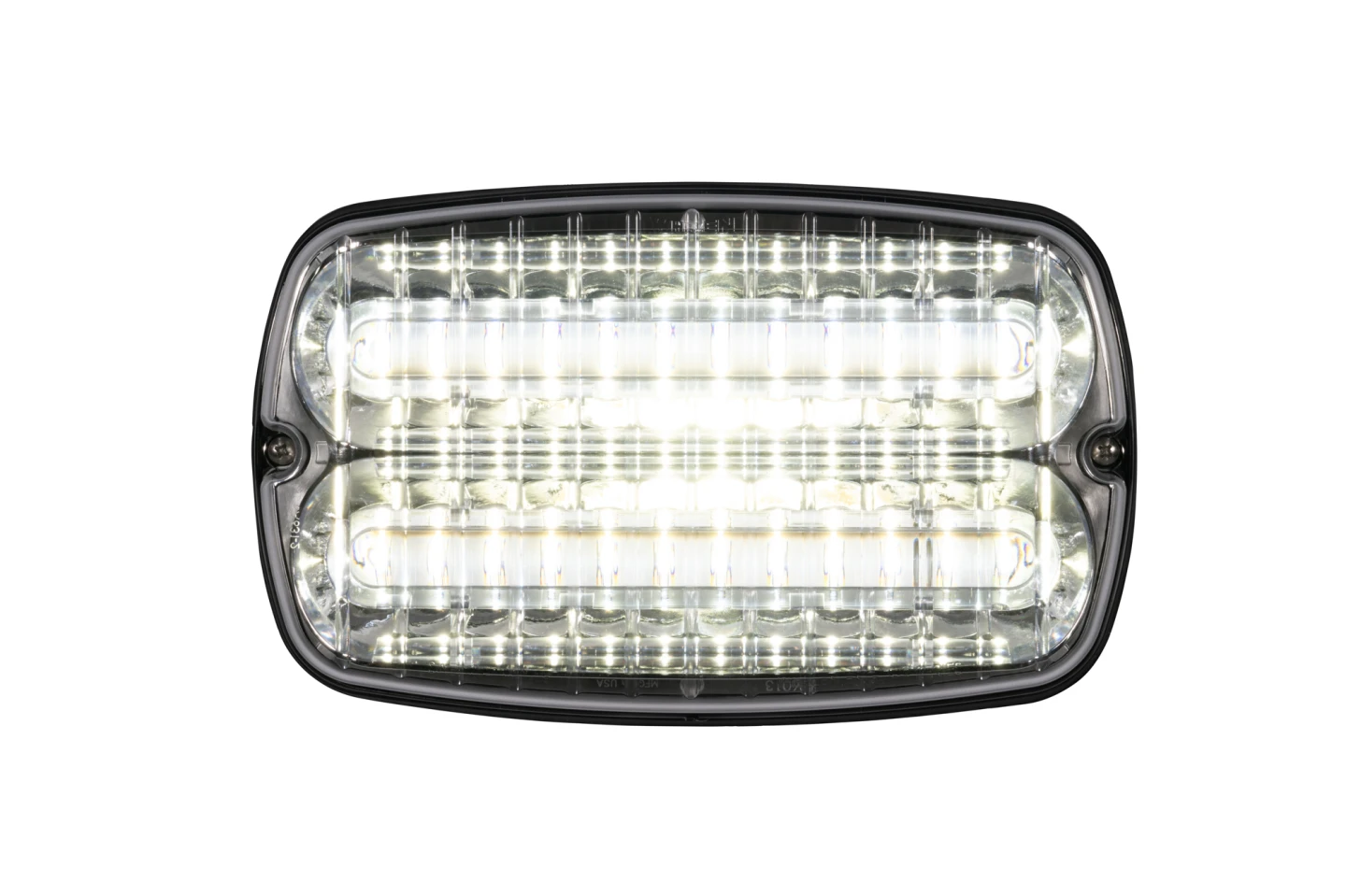

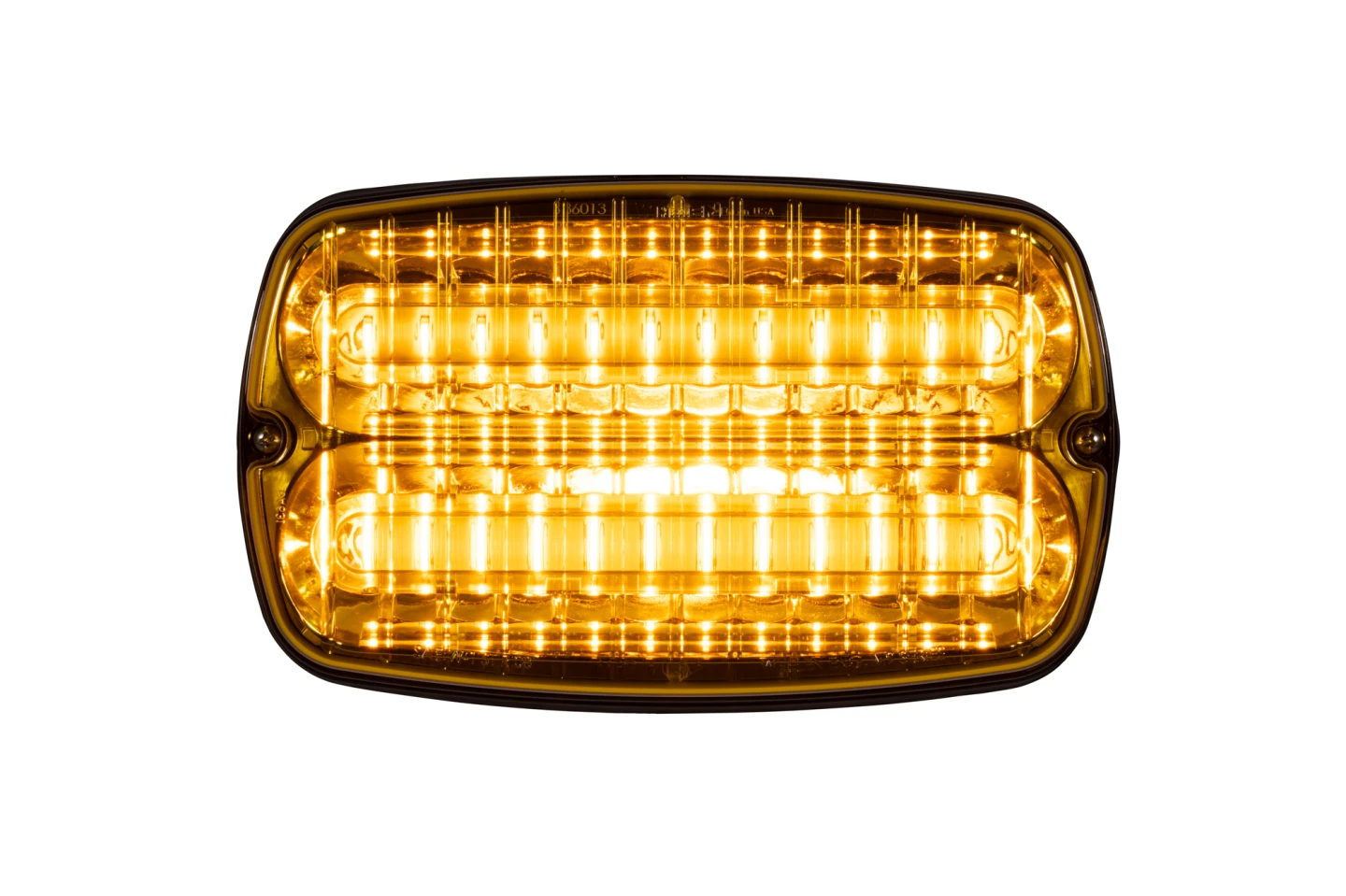

WHELEN M9 SERIES SURFACE-MOUNTED LIGHTHEADS

The M9 lighthead from Whelen delivers powerful warning and scene illumination tailored for fire trucks, ambulances, and commercial vehicles. The largest model in our M Series™, the M9 uses Linear Super-LED® optic technology to deliver bright, consistent illumination, making it ideal for critical operations. Available in SOLO™, DUO™, V-Series™, and Scene Light models, the M9 features Dynamic Variable Intensity™ (DVI™) light patterns, which gradually increase or decrease intensity, adjusting brightness levels during nighttime operations to enhance safety. The M9 also includes our patented E Block™ technology, which provides a barrier to prevent air and moisture from entering the lighthead. Its polycarbonate lenses use our innovative hard-coating process to resist sand, sun, salt, and road chemicals, ensuring long-lasting performance in any environment. Its larger footprint makes it suitable for primary warning or additional scene lighting on fire apparatus, rescue vehicles, and DOT fleets.

• Large-Profile Design: Delivers maximum visibility and expansive light coverage
• Advanced Optics: Unique lens shape and patented Linear-LED® designed reflector assembly
• Unmatched Performance: Delivers high-intensity warning with energy-efficient low current consumption
• Cutting-Edge Technology: Designed with industry-leading Whelen technology for optimal performance and reliability
• Application Ready: Available in Warning, Brake/Tail/Turn, Turn, Back-Up, and Scene Light models to suit diverse needs
• EZ Scene Option: M9 EZ Scene Light™ shares the same footprint for seamless integration

Optics Linear Super-LED®: SOLO™, Split-Color and DUO™ models available
Technology SmartLED®: Self-contained electronics power and flash LEDs without the need for external flashers, ballasts, or power supplies
Dynamic Variable Intensity™ (DVI™): Gradually adjusts light intensity for improved nighttime visibility and safety (SOLO and DUO models only)
E Block™: Patented watertight seal prevents moisture from entering the lighthead (DUO models)
Steady-Lock®: Automatically set flash pattern to Steady when paired with a Core® system (SOLO and DUO models)
Scan-Lock™: Advanced flash pattern control
Sync: Connect multiple Whelen devices for synchronized or alternating flash patterns
Flash Patterns SOLO and DUO Models: 189 Scan-Lock™ flash patterns
Split-Color Models: 64 Scan-Lock™ flash patterns
Control Steady or SmartLED
Customization Lenses: Clear, Color, or Smoked (Warning Lights Only)
Flasher: Built-In or Separate
Application Models Available: Warning, Brake/Tail/Turn, Turn, Back-Up, Gradient Scene, or Combination Warning/Scene
Multiple Flange and Mounting Additions Available
Construction Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals
Conformal Coated Electronics: Environmental, moisture, and vibration resistance
E Block™: Patented watertight seal prevents moisture from entering the lighthead (DUO models)
Mounting Surface
Included Cables & Hardware 18 AWG 9" (22.86 cm) Pigtail
Certifications SAE Standards
SAE J595
SAE J845
Emergency Vehicle Standards
NFPA 1900
KKK-A-1822F
Environmental
IP67
Regulatory Compliance
CA Title 13
R10
Warranty
10-year

Please see our warranty statement for more information here.

Voltage 12/24 VDC
Amps SOLO and DUO Models: 3.0 (peak), 1.2 (avg)
Split-Color Models: 1.0 (peak), 0.4 (avg)
Scenelight Models: 6.0 (peak), 2.4 (avg)
Warning amps: 1.58 (peak), 0.63 (avg.)
Size Warning and Scenelight Models:
Width: 10.35" (26.29 cm)
Height: 6.51" (16.54 cm)
Depth: 1.39" (3.53 cm)
V-Series Models:
Width: 10.35"
