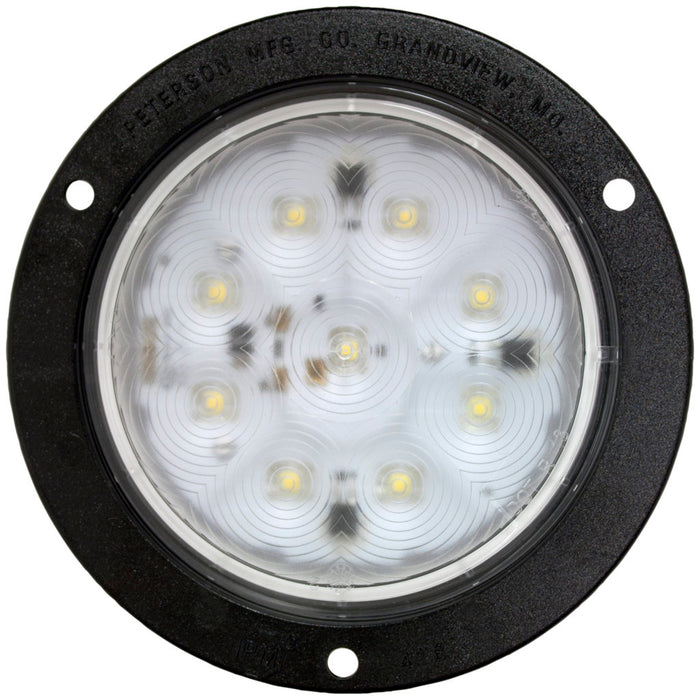

LED Work Light, Round, Flange-Mount, 4″

SKU PM 800WF-9
  • DESCRIPTION
  • SPECIFICATIONS
  • 9 diodes
  • Lumenx® lens and circuitry.
  • Made in USA.
  • Multivolt version available.
  • Voltage Regulated.
  • New white diodes behind clear lens.
  • Available in 450 lumen & 800 lumen versions.
  • Advanced optics fully illuminate lens.
  • Flood pattern for broad illumination.
  • Also suitable for dome or utility light.
  • Regulated design provides voltage protection and consistent light output over a wide voltage range.
  • Skirted weld joint provides added protection against road and weather conditions.
  • 817 series has 9–32 volt operating range. 800 series is compatible with 12 volt systems only.
  • 800 series draws 0.65A @ 14V.
  • 817/818 series draws 0.29A @ 12V, 0.22A @ 24V.
  • M800W-9 & M817W-9 require grommet or surface-mount bracket.
  • M800WF-9 M818W-9 are equipped with integral mounting flange.
  • Maximum Voltage: 32 Volts
    Length: 4.25 Inch
    Height: 4.25 Inch
    Width: 1.49 Inch
    Voltage: 12 Volts
    Termination: Amp
    Shape: Round
    Multi-Volt: Y
    Mounting Type: Flange
    Minimum Voltage: 9 Volts
    Marine Use: N
    Beam Pattern: Flood
    Light Color: White
    Lens Color: Clear
    Integral Switch: N
    Exterior Use: Y
    Diameter: 4.25 Inch
    Coil Cord: N
    Bulb/Diode Count: 9
    Bulb Technology: Led
Original price $ 748.00 - Original price $ 748.00
Original price
$ 748.00
$ 748.00 - $ 748.00
Current price $ 748.00
