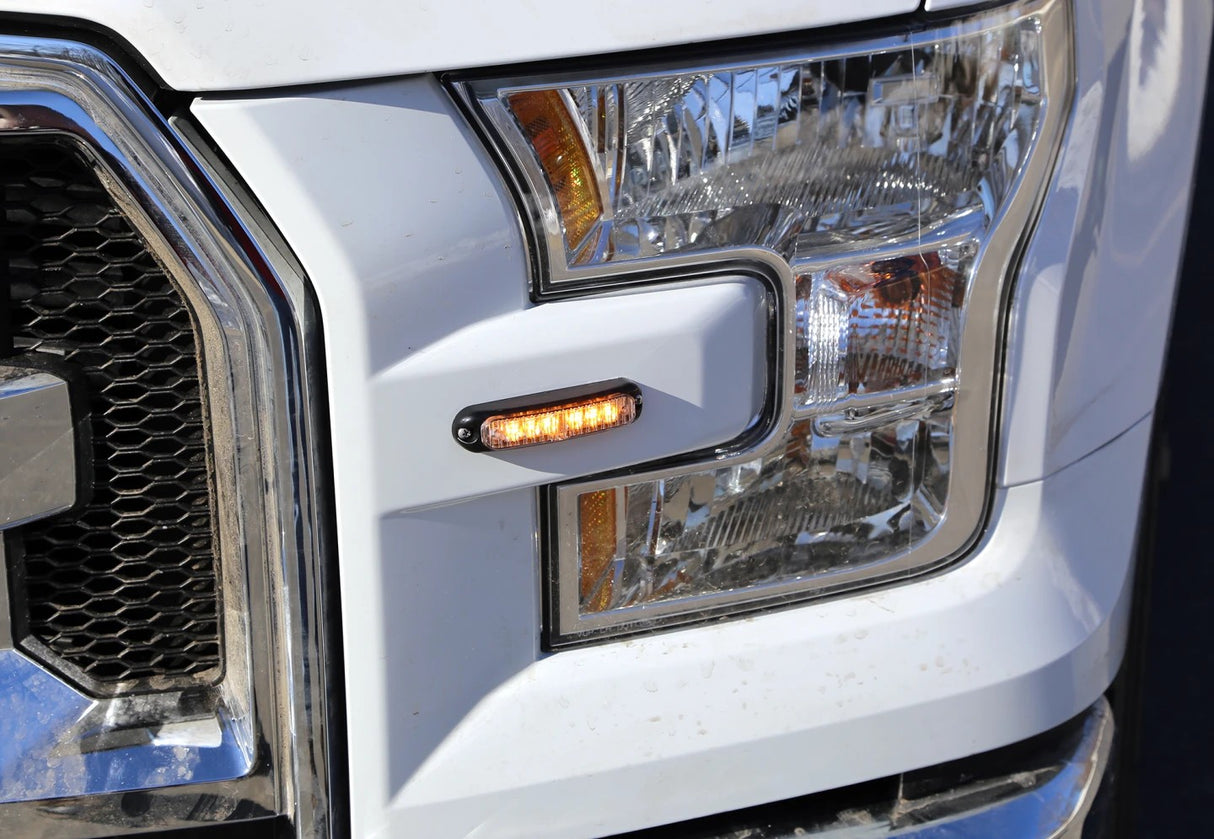

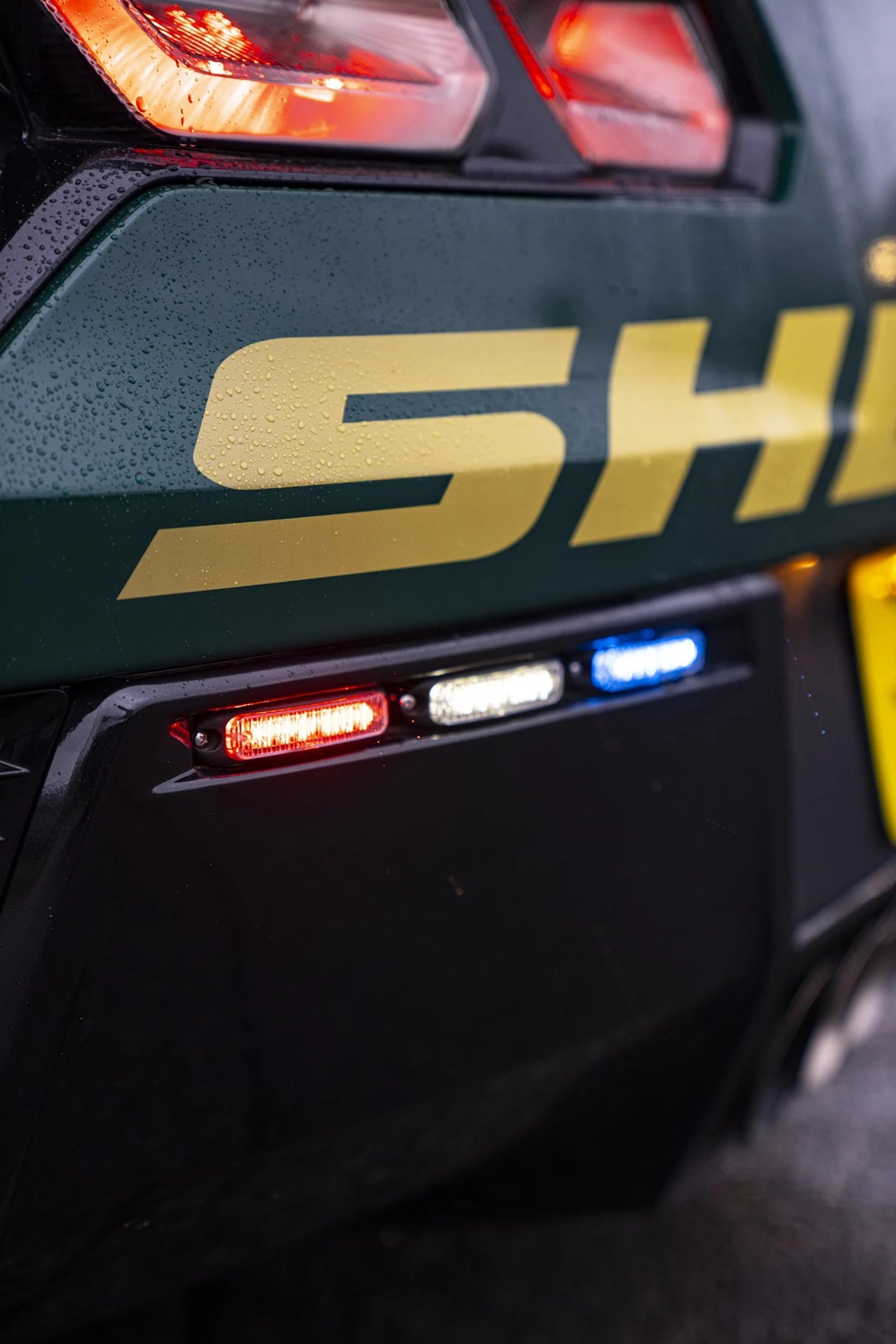

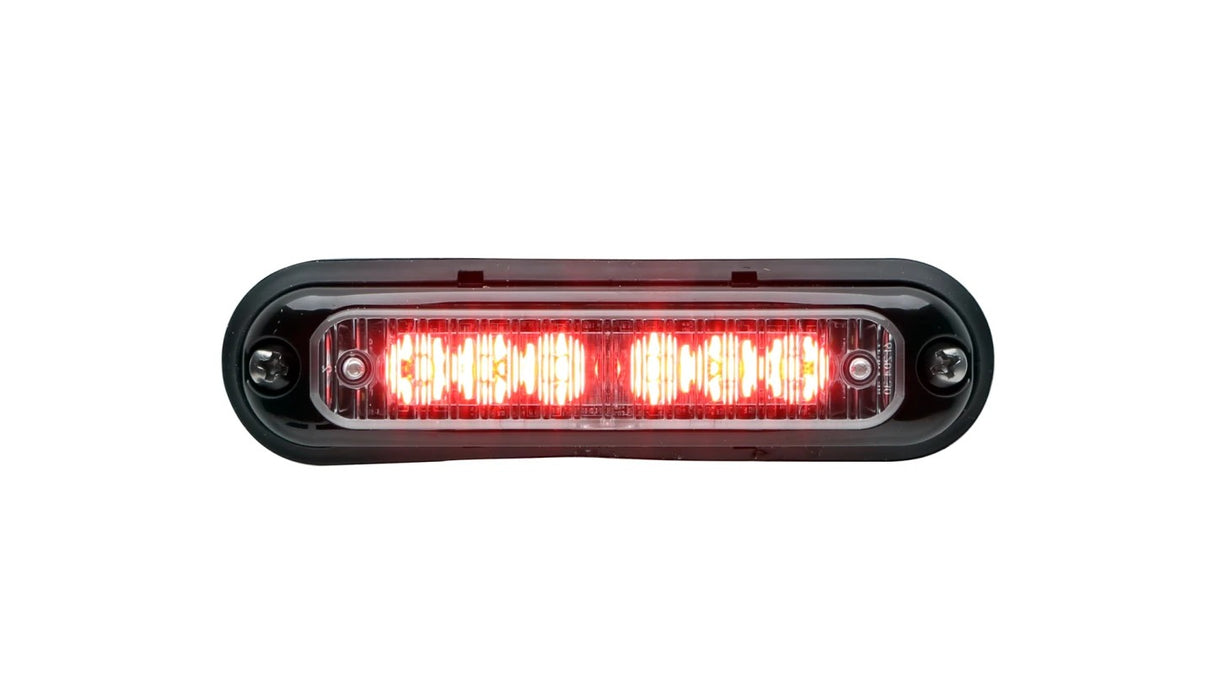

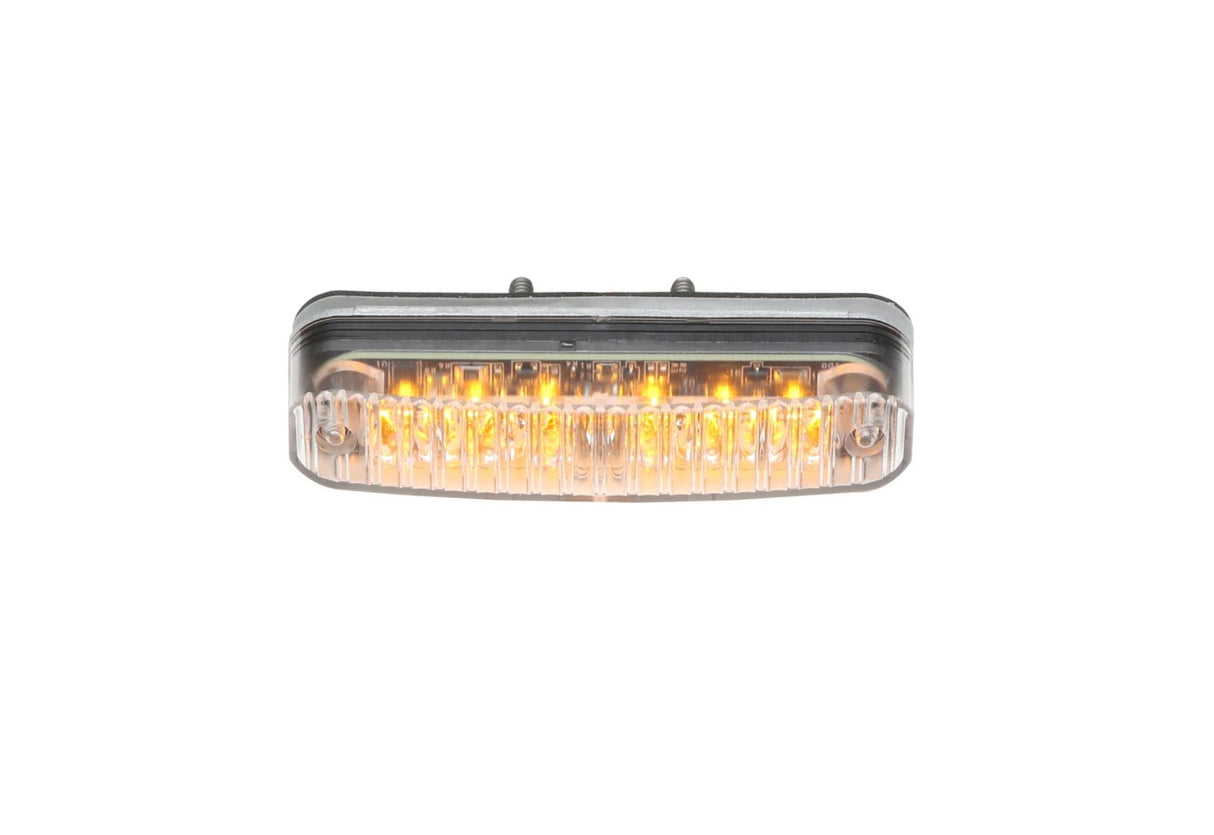

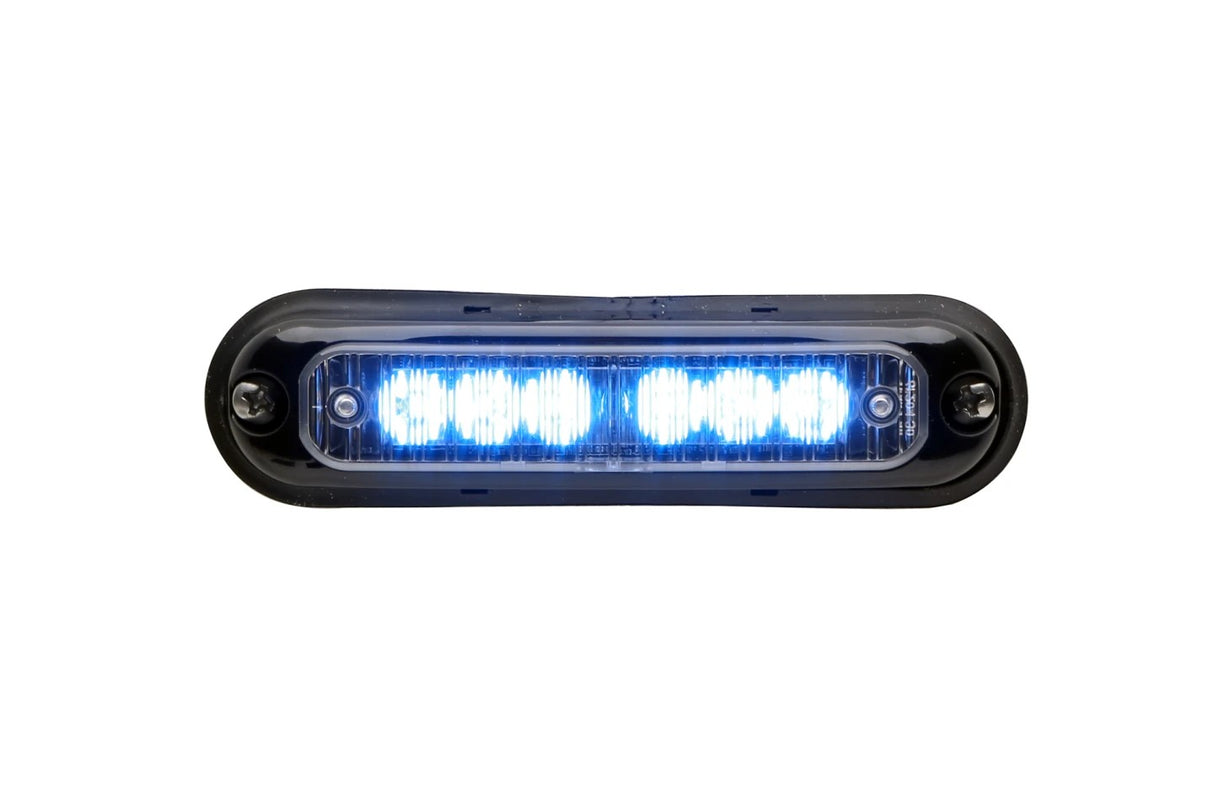

Micron™ Surface-Mounted Lightheads

The Whelen Micron™ is a compact, high-performance LED lighthead designed for versatility across a wide range of vehicle applications. Micron’s TIR6™ LED optic technology ensures exceptional visibility while consuming minimal power, making it ideal for any emergency or commercial fleet. With a rugged, weather-resistant design, it withstands tough environments and extreme weather conditions, delivering consistent performance whenever it’s needed. Whether installed on law enforcement, fire, EMS, or utility vehicles, Micron’s compact form makes it easy to integrate into tight spaces without sacrificing effectiveness. Available with multiple mounting options and a variety of flash patterns, Micron adapts to every vehicle’s unique needs, providing efficient, low-profile warning that keeps first responders and workers safe on the road.

Optics SOLO™ and Split-Color TIR6™ LED models available
Technology SmartLED®: Self-contained electronics power and flash LEDs without the need for external flashers, ballasts, or power supplies
Scan-Lock™: Advanced flash pattern control
Sync: Connect multiple Whelen devices for synchronized or alternating flash patterns
Flash Patterns 25 Scan-Lock™ flash patterns
Control SmartLED®

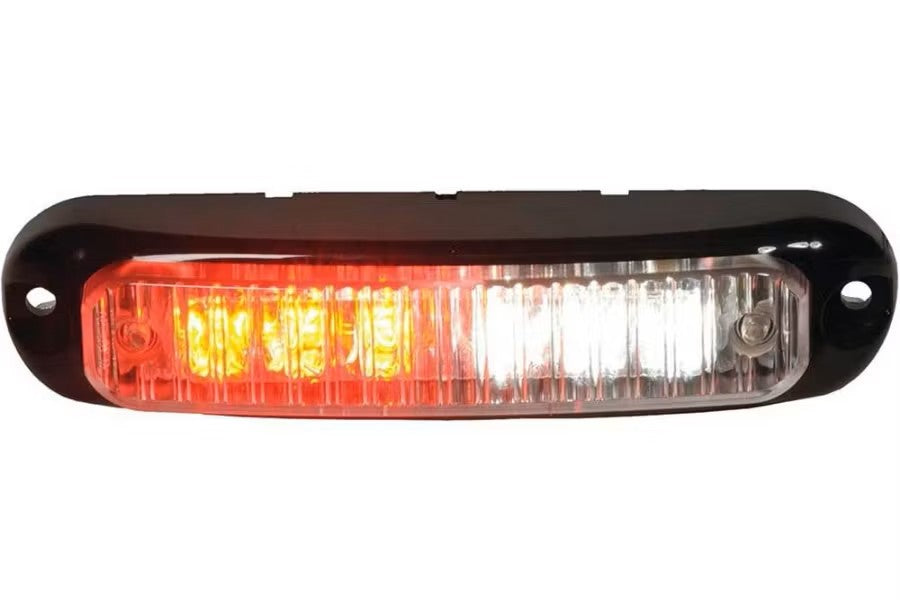

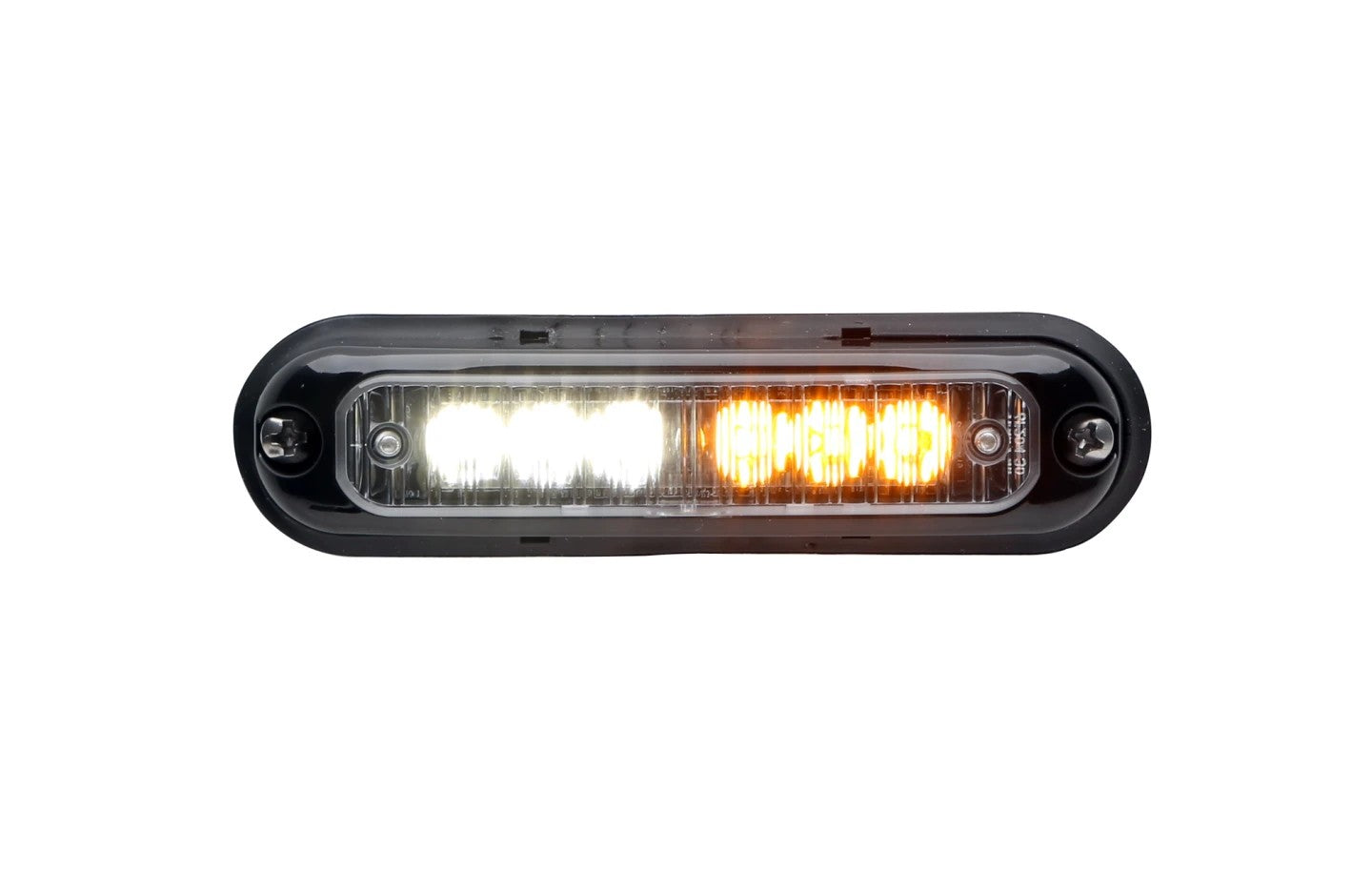

Customization Configuration: SOLO or Split-Colors
Flanges: Black or Chrome
Lenses: Clear or Smoked
Optional Additions: “L” Mounting Bracket, License Plate Bracket
Construction Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals
Conformal Coated Electronics: Environmental, moisture, and vibration resistance
Mounting Surface or Stud Mounted models available

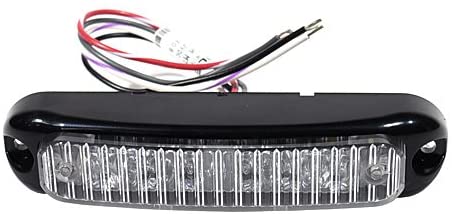

Included Cables & Hardware 6” (15.24 cm) 4-wire pigtail cable
Certifications SAE Standards
SAE J595
SAE J845
Emergency Vehicle Standards
NFPA 1900 Contributor
KKK-A-1822F Contributor
Regulatory Compliance
CA Title 13
Warranty
10-year

Please see our warranty statement for more information here.

Voltage 12/24 VDC
Amps 0.6 (peak), 0.24 (avg.)
Size
Surface Mounted:
Width: 4.04” (10.26 cm)
Height: 0.89” (22.61 mm)
Depth: 0.83” (21.08 mm)

Stud Mounted:
Width: 3.24" (8.23 cm)
Height: 0.69" (17.53 mm)
Depth: 0.82" (2.08 mm)
